상세 정보 |
|||
| 모델: | BTD23-A | 능력: | 23 Ｌ |
|---|---|---|---|
| 공칭 전압: | AC100/220v, 50HZ /60HZ | 명목상 힘: | 2000W |
| 운영 환경 온도: | 5 오크 ~ 40 오크 | 순중량: | 60Kg |
| 특징: | 마이크로컴퓨터 메인보드 제어 | 장점: | 안과학 / ENT |
| 하이 라이트: | ENT 데스크탑 압력솥 살균기,23L 압력솥 클래스 B 살균기,23L 데스크탑 압력솥 살균기 |
||
제품 설명

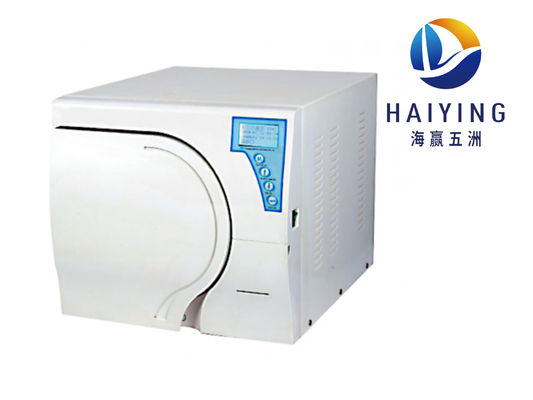

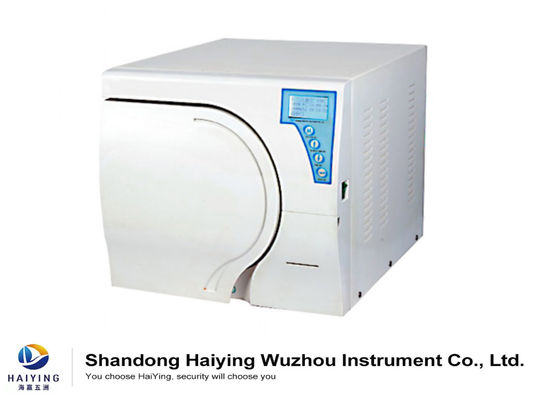

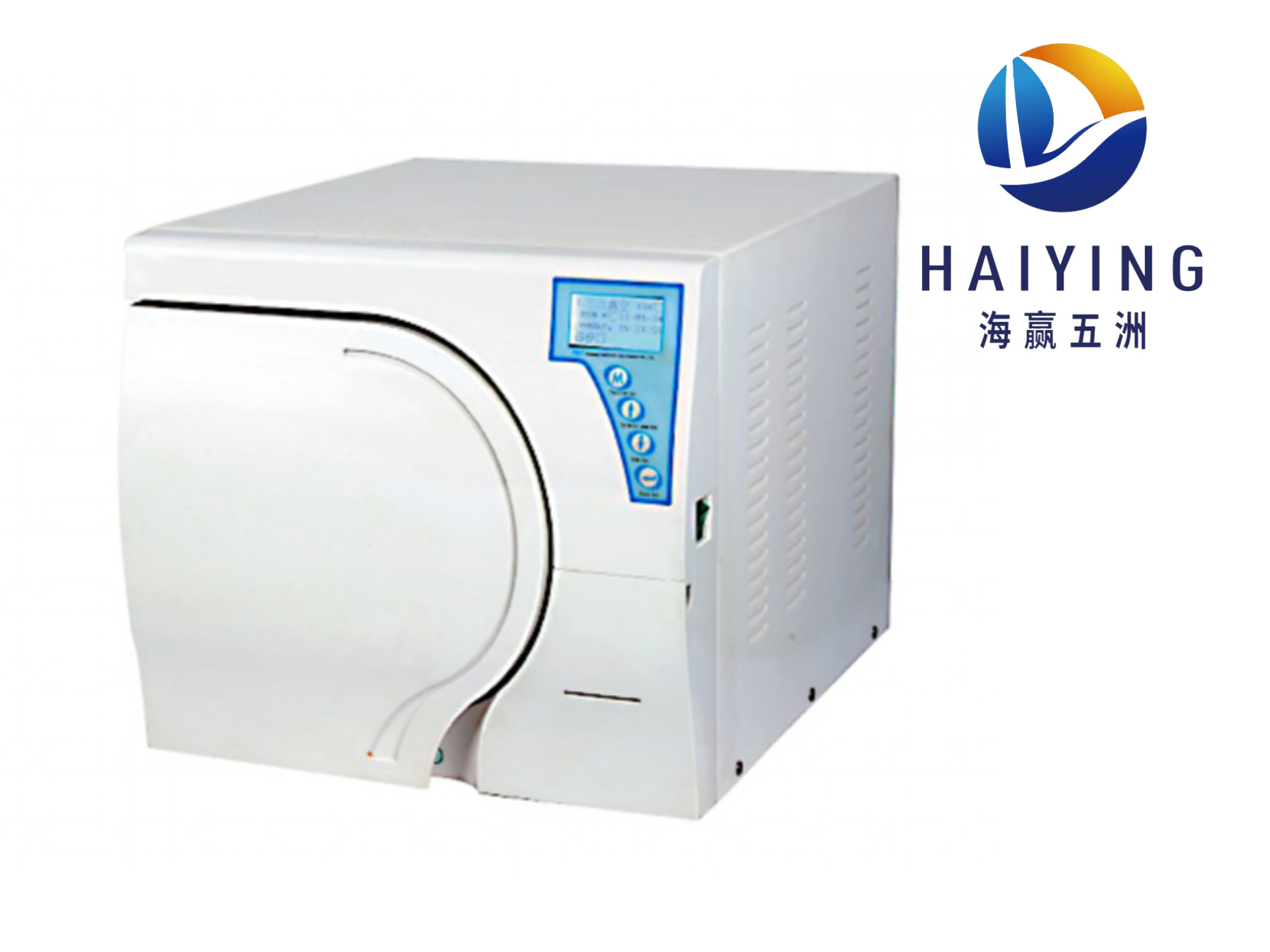

Microcomputer Motherboard Control Ophthalmology/ENT Desktop Autoclave Sterilizer
Desktop Autoclave Sterilizer Advantage:
| Model | BTD23-A |
| Nominal voltage | AC100/220v , 50HZ /60HZ |
| Nominal power | 2000W |
| Sterilization temperature ( user-defination) | 121 ℃/134 ℃(Custom 105 ℃ - 134℃) |
| Operating environment temperature | 5℃- 40℃ |
| Rated working pressure | 0.11 M Pa/0.21 M Pa |
Desktop Autoclave Sterilizer Operating specifications
一,Desktop Autoclave Sterilizer Preparation Before Use:
◆ Water tank, add pure water or as required in accordance with the requirements after connecting water, connection equipment power supply.
◆ Sterilizer, turn on the power supply, the power switch in the on state, to be prepared for the program is running;
◆ According to the specified requirements or load type, select the BD program or preheat (for example, if is the class B load with a cavity, generally need to first run BD application, if all are exposed solid equipment can run the preheating process) onto a BD indicate the operator's name or code, date, such as tag, run out into the south in BD experimental procedures, monitoring equipment without leakage, the equipment is normal:
◆ stay sterilization package, strapping not too tight, the built-in chemical indicator CARDS, chemical indicator tape is stuck outside.
二,Desktop Autoclave Sterilization Operations:
◆ According to the specified requirements of qualified experiment in BD or after preheating, will stay sterilization items in the sterilization room, around the bag and bag should leave gaps between don't stick on the wall and door plank;
◆ Sterilizer, close the door, according to the sterilization items selected sterilization procedures, check whether the sterilization parameters correctly, start the program:
◆ Sterilization process, the operator shall not be far away from the equipment, should closely observe the equipment running status, if there are any abnormalities, and processed in a timely manner, to prevent accidents
◆ Completes the sterilization effect of monitoring, record purpose, easy to track survey;
◆ End of the sterilization, after waiting for indoor pressure back to zero, can open the door to take out the items
◆ After sterilization items from the sterilizer, carefully placed up, prevent secondary pollution.
三,Desktop Autoclave Sterilizer Operation After Use
◆ open cupboard door, will the power switch in the off state, to cut off the equipment power supply:
◆ Water quality is poor or run after five fire bacteria process must change water:
◆ Evaporator, monthly cleaning (cleaning method in accordance with the manual)
◆ At the end of the daily work, sterilizer should be kept clean inside and outside, you should use a clean cloth and water chamber dirt" clean, according to the instruction weekly maintenance, monthly maintenance.
