상세 정보 |
|||
| 타입: | LR8M | 맥스 RCF: | 11377×g |
|---|---|---|---|
| 최대 속도: | 8000r/min | 최대 수용량: | 6×1000ml |
| 타이머 범위: | 연속적 런 기능으로, 1min-99h59min | 전원 공급기: | AV220V 50HZ |
| 임시 직원 통제 범위: | -20C~+40C | 특징: | 자동 보호 |
| 하이 라이트: | LR8M 대용량 냉각 원심기,6×1000mL 대용량 원심분리기,8000 Rpm 대용량 냉각 원심기 |
||
제품 설명

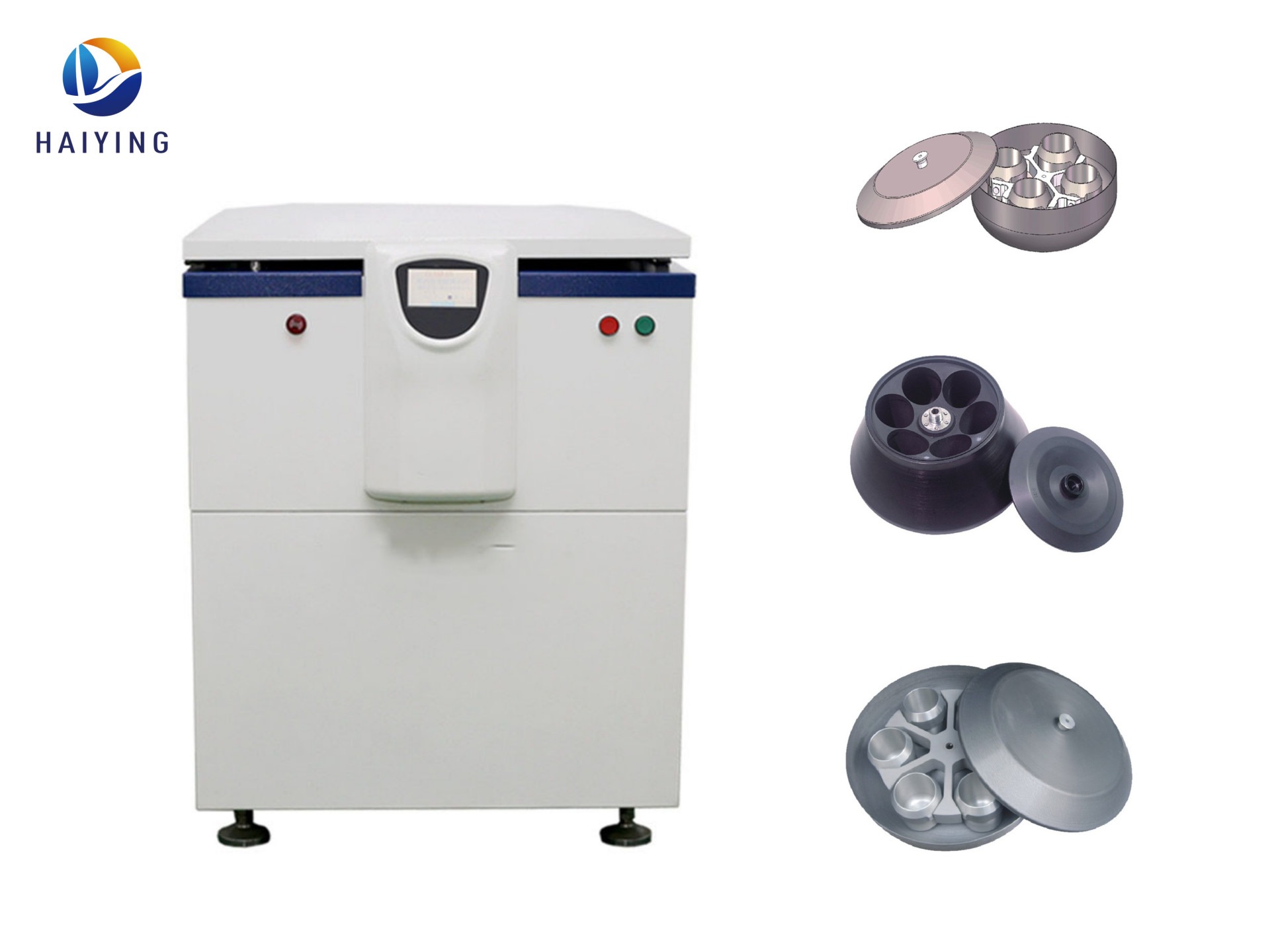

Large Capacity Refrigerated Centrifuge Feature:
1. Use advanced CPU control system to achieve
Microprocessor controls speed and temperature and RCF.
2. Maintenance-free variable frequency motor can
Prevent overspeeding.
3. Adopt imported CFC-free refrigeration system
Operate for the purpose of environmental protection.
4. With over-speed and over-temperature protection,automatic electronic imbalance and protection or mechanical lock to ensure the safety of the operator and machine.
5. LR8M low-speed large-capacity refrigerated centrifuge, rear austenitic 304 stainless steel centrifugal cavity with all-steel spray-plastic shell, integral stamping and forming steel front face and three-layer steel protective cover and other security devices, which are both durable and ensure Safety of staff and laboratory use.
|
Max RCF
|
11377×g
|
|
Max Speed
|
8000r/min
|
|
Max Capacity
|
6×1000mL
|
|
Timer Range
|
1min-99h59min, with continuous run function
|
|
Temp control range
|
－20℃～+40℃
|
|
Noise level
|
≤65dB(A)
|
|
Power supply
|
AC220V 50Hz
|
What is the centrifugation principle of the large capacity refrigerated centrifuge?
When a suspension containing fine particles is left still, the suspended particles gradually sink due to the action of the gravity field. The heavier the particle, the faster it sinks, otherwise the particle with a density lower than that of the liquid will float up. The speed of particles moving in the gravity field is related to the size, shape and density of the particles, and also related to the strength of the gravity field and the viscosity of the liquid. Particles the size of red blood cells, with a diameter of several microns, can be observed under normal gravity.
In addition, when a substance settles in a medium, it is accompanied by a diffusion phenomenon. Diffusion is unconditional. Diffusion is inversely proportional to the mass of the substance, the smaller the particle, the more serious the diffusion. The settlement is relative, conditional, and can only be moved by external forces. The settlement is proportional to the weight of the object, the larger the particle, the faster the settlement. For particles smaller than a few microns, such as viruses or proteins, they form a colloidal or semi-colloid state in the solution. It is impossible to observe the sedimentation process only by gravity. Because the smaller the particles, the slower the sedimentation, and the more serious the diffusion phenomenon. Therefore, it is necessary to use a centrifuge to generate a strong centrifugal force to force these particles to overcome diffusion and produce a settling motion.
Centrifugation is to use the powerful centrifugal force generated by the high-speed rotation of the centrifuge rotor to accelerate the sedimentation speed of the particles in the liquid and separate the substances with different sedimentation coefficients and buoyancy densities in the sample.
