상세 정보 |
|||
| 모델: | BHC-1000A2 | 타입: | BSC 생물학적 안정성 캐비넷 |
|---|---|---|---|
| 전반적인 크기: | 120×75×195cm | 정화 영역 크기: | 100×65×58cm |
| 정화 효율성: | 100개 단계 (미국 연방 기준 209E) | 중량: | 160 킬로그램 |
| 힘: | 0.8kw | 소음: | ≤65dB(A) |
| 강조하다: | 50HZ BSC 생물학적안정성 Cabinet,65dB 생물학적안정성 각료 레벨 2,65dB BSC 생물학적 안정성 캐비넷 |
||
제품 설명

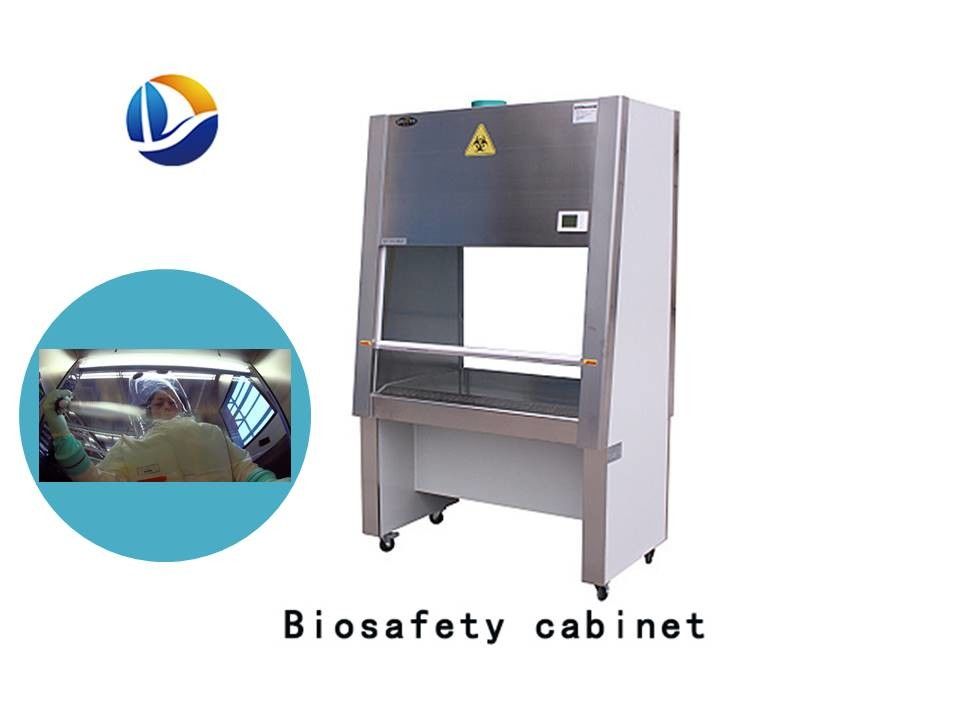

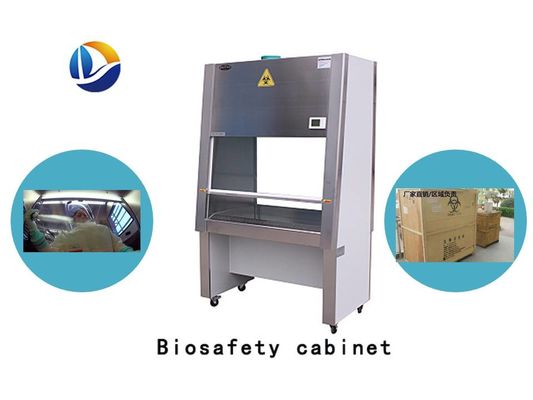

Federal guarantee High efficiency filtration BSC Biosafety Cabinet
BSC Biosafety Cabinet Features:
◆ Federal guarantee High efficiency filtration BSC Biosafety Cabinet
◆ The safety cabinet is the primary laboratory isolation device for safe use in the operation of highly hazardous microorganisms, toxic substances and radioactive oligonucleotides.
◆ The experimental area is made of high-quality 304 stainless steel, and the working area is equipped with a 2KW spare socket to provide convenience for operators.
◆ Liquid crystal control panel, wind speed can be adjusted to ensure that the equipment in an ideal state
◆ The roller adopts thickened plate steel frame, which has strong load resistance and abrasion resistance, and is not easy to be damaged and has a long service life
◆ The sliding front window adopts a suspension lifting system, which can be lifted and positioned arbitrarily, with reliable performance and maintenance-free. It is convenient for sterilization after being closed and sealed.
◆ The working area is made of standard 304 stainless steel, and the internal arc angle is designed without clean dead corners.
◆ Adopt German imported fan, with low noise and large air volume.
◆ Using a unique high-efficiency filter, the working area reaches 100 levels, and the filtration efficiency is >99.995%.
◆ Split structure, cabinet and bracket can be separated.
◆ The negative pressure channel design on all sides avoids the diffusion of harmful gases and aerosols, making it safer and more reliable.
BSC Biosafety Cabinet Product introduction:
It is widely used in biosafety protection and isolation equipment in microbiology, biomedicine, biological laboratories and other laboratories. It adopts advanced air purification technology and negative pressure cabinet design to realize the protection of the environment, personnel and samples and prevent harmfulness. The diffusion of suspended particles and aerosols.
| model | BHC-1000A2 |
| purification area size | 1000×650×580MM |
| purification efficiency | The 100 stage(America federal standard 209E) |
| power | 0.8KW |
| power supply | 220V 50HZ |
Classification of BSC Biosafety Cabinet:
According to the NSF49 standard, the medium of biosafety level 1 (P1) refers to ordinary harmless bacteria, viruses and other microorganisms; the medium of biosafety level 2 (P2) refers to general pathogenic bacteria, viruses and other microorganisms; biosafety The medium of level 3 (P3) refers to microorganisms such as potent/fatal bacteria and viruses, but can be cured after infection; the medium of biosafety level 4 (P4) refers to microorganisms such as potent/fatal bacteria, viruses, etc., and it is not easy to cure after infection . This standard divides biological safety cabinets into grades Ⅰ, Ⅱ, and Ⅲ, which can be applied to the operation of media of different biological safety grades.
